Machined Piston 12mm (3 x 1.4mm) | AE, Losi, Kyo, Yok

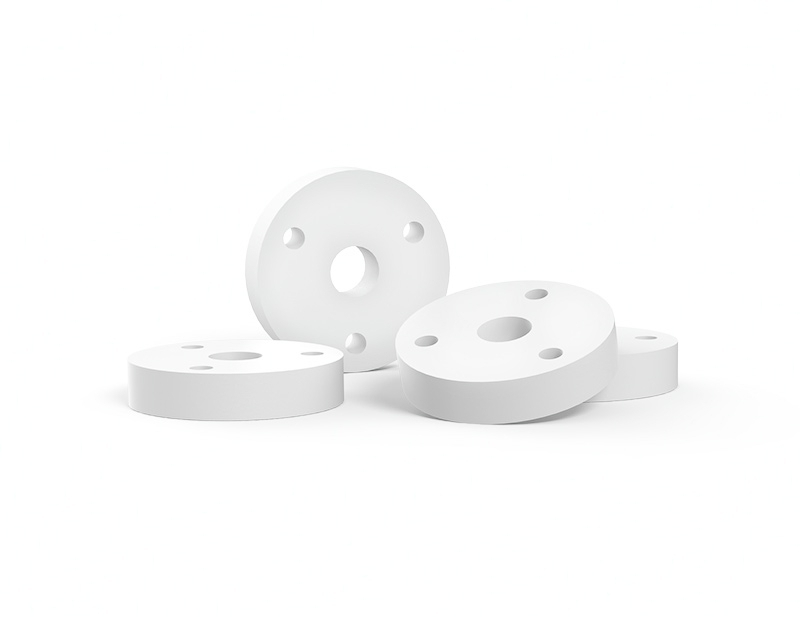

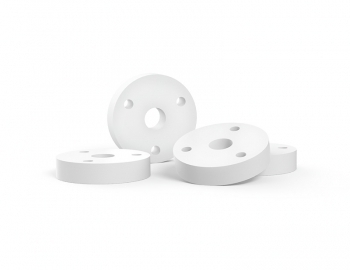

The AV1030 machined 12mm piston with 3 x 1.4mm holes offers a conventional setup but with a tight-fitting piston that has little blow-by.

Piston Tips

• Use 1.5+1.1 piston in replacement of the 2 x 1.6. In buggy, typically start with 30 wt oil front and 27.5 or 30wt rear.
• Use 1.6+1.1 piston in replacement of the 2 x 1.7. In buggy or truck, typically start with 30 or 32.5 wt oil in rear shocks.
• For a 4wd buggy, we recommend 1.5+1.1 front with 35 wt and 1.6+1.1 rear with 30 wt.

Piston Features

• Fits 12mm shocks for Team Associated, TLR 22, and Kyosho (12mm bore, 3mm hole, 2.5mm thick).
• Machined round with a tighter fit to bore of the shock body for less blow-by.
• Each package includes 4 pistons inside of a Doodad container printed with AVID logo.

Setups / Tuning Guide

• Avid Piston Tuning Guide
• B44.2 Coach Standard | West Coast RC | Smooth, Medium bite, Clay
