13x25x6 Rear

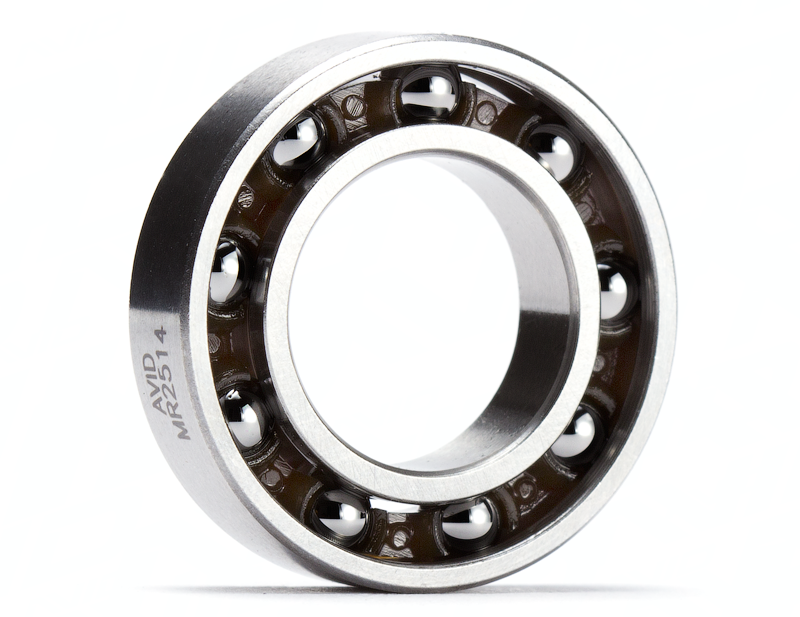

The Avid 13x25x6 Engine Bearing offers the amazing performance and reliability to your engine at an unbeatable price. The bearing specs are Abec3, 11 G5 Chrome Steel 52100 Balls, PA66 with 30 Glass Fiber Cage, and Chrome Steel 52100 Rings. It has no seals to allow for proper lubrication from the oil in your fuel.

If your engine is not listed below, please check with your manufacturer first to see what size you require.

Engines Used In

• Novarossi: N21BF
• RB: S3, S5, S7, WS7

Tips

• Diagnosing: If you hold the head of the engine with your hand and the rattling sound disappears then you have a worn-out rear bearing. The risks/issues of a bad rear bearing are not holding a tune, crank can get worn, and worst of all the bearing comes apart and eats your piston/sleeve.
• Installation: The best way to install is to use a bearing puller/installer, OFNA makes a very affordable one. If you place the new bearing in the freezer for 15 minutes it will be easier to install.
• Positioning: For proper lubrication, face the open side where you can see the balls to the rear of the motor (not the clutch side).

• METRIC: 13mm (Inner) x 25mm (Outer) x 6mm (Width)
• STANDARD: 0.51181" (Inner) x 0.98425" (Outer) x 0.23622" (Width)
