Associated Shock Standoff | +.030

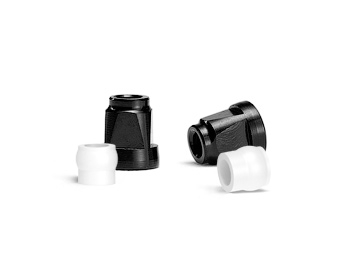

The Avid Standard +.030 Standoff for Associated vehicles is only for racers upgrading older model cars from V2 shocks to larger 12mm big-bore shocks. It is commonly used on the front of a B4.1*, T4.1, and SC10 for those running 12mm shocks. *minor trimming required to clear spring adjustment collar. Avid has designed strong standoffs with replaceable Delrin™ pivot bushings to coincide with the release of the new 12mm Team Associated big-bore shocks. The standard +.030 aluminum shock standoffs are made of black anodized 7075 Aluminum and have a wide base to prevent bent shock mount screws from de-railing your bid for TQ. The Delrin™ pivot bushings can be replaced to help keep a tight fit and not wear out your aluminum shock caps.

What size standoff do I need?

Associated Shock Standoff | Short This is a direct upgrade for the #1781 Associated Short Bushing. It is used on the rear of a B4.2, T4.2, and SC10. Associated Shock Standoff | Standard This is a direct upgrade for the #1780 Associated Bushing. It is used on the front of a B4.2, T4.1, and SC10 as well as all 4 locations on a B44.2 and B44.1. For racers upgrading an older model car from V2 to 12mm big-bore shocks, this length goes on the rear shock tower of a B4.1, T4.1, and SC10 to avoid trimming the rear shock tower. Associated Shock Standoff | +.030 This is only for racers upgrading older model cars from V2 shocks to larger 12mm big-bore shocks. It is commonly used on the front of a B4.1*, T4.1, and SC10 for those running 12mm shocks. *minor trimming required to clear spring adjustment collar. Associated Shock Standoff | +.090 This is only for racers upgrading older model cars from V2 shocks to larger 12mm big-bore shocks. Used on a B44.1 front and rear and a B4.1 front to avoid trimming the front shock tower.

Details

• Avid Standard +.030 Standoff for Associated vehicles is only for racers upgrading older model cars from V2 shocks to larger 12mm big-bore shocks. It is commonly used on the front of a B4.1*, T4.1, and SC10 for those running 12mm shocks. *minor trimming required to clear spring adjustment collar.
• 7075 Aluminum, black anodized
• Wide base and extended standoff prevents mount screws from bending easily.
• Delrin™ bushings are replaceable for low friction, low slop. No metal-on-metal contact.
• Standoffs have 3/16"� flats for open ended wrench

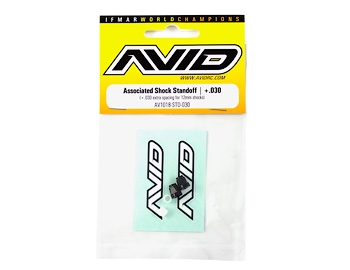

• Each package includes 2 short standoffs, 2 Delrin™ bushings, and 1 AVID mini decal sheet.
