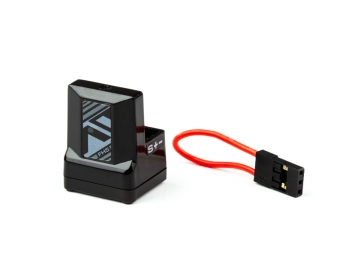

Sanwa FH5 SSL 2.4GHz Receiver | RX-492i Replica

This receiver is a replica of the Sanwa RX-492i 2.4GHz 4-Channel FH5 SSL Telemetry Receiver which uses a built-in antenna with exceptional range and response time. With a lightweight design and a small footprint, this receiver is great for 1/10 and 1/12 scale electric RC cars. This receiver is SSL compatible with either the Super Vortex or PGS Servos (Sold Separately).

Note

• RPM sensor (SNW107A41061A) and temperature sensor are not compatible
• RPM and temperature telemetry are only capable with the Sanwa Super Vortex series
• FH5U RF mode is not capable to use telemetry

Tip

• The plug area is tight and if you have a Futaba J plug with the small side guide piece, it is recommended that you trim it off with an Xacto (cut away from yourself please).

Bind

• These instructions are included with your receiver.
• Turn on the transmitter, enter [BIND].
• Connect the included BIND plug into the BIND port.
• Turn on the receiver.
• The LED will change from slow flashing blue to fast.
• Turn off the receiver, remove the BIND plug.
• Finish the [BIND] mode on the transmitter.
• Turn the receiver back on, you are good to go.

Specifications

• Frequency: FH5/FH5U (FHSS5/FHSS5U)
• Channel: 4CH
• Input Voltage: 3.7-8.4V
• Compatible Radio: M17, MT-5, and MT-R
• Height: 27.5mm
• Width: 20.5mm
• Height: 18.5mm
• Includes: (1) receiver, (1) bind plug, and an instruction card.
