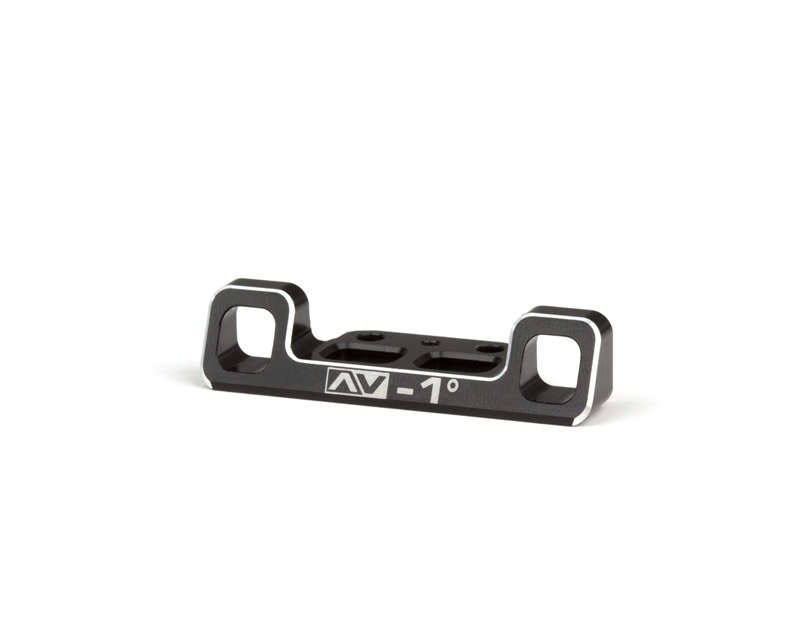

TLR 22 5.0 C Pivot Block | 4wd Rear Arms | Wider -1°

The Avid TLR 22 5.0 -1° "C" Pivot Block is a must-have if you are racing on high bite surfaces such as carpet or turf. In order to run this mount, you must be running the 22X-4 rear arms TLR234113 (*read tips section below). This mount frees up the vehicle in the turns and when landing jumps sideways such as corner tabletops. Typically, to get to the low rear toe settings that you need on carpet, you have to start narrowing the pills through the D Mount which is increasing side bite by decreasing your trackwidth. Our C Arm mount prevents that from happening by widening the C pivot block, thus starting you at 2 deg of rear toe with centered pills on the C and D mount instead of 3. You will be amazed at how well your car handles with less rear toe done in the correct fashion.

Tips

We have made this block -1° instead of -2° so that you can have the flexibility of running the longer 22X-4 rear arms without cutting them (TLR234113). The TLR racers have found this to be the best setting for both carpet and dirt with current setups. Our block will allow you to get toe settings of 0° to -4°.

Details

• Removes 1 degree of rear toe without removing trackwidth.
• Frees up the car up in turns and when landing jumps sideways such as corner tabletops.
• Can run the popular setting of 22X-4 longer rear arms without cutting them (TLR234113).
• Made with 7075-T6 and anodized black with silver chamfer highlights.
• Laser-etched Avid logo and -1° for easy identification.
